In the heart of Cairo’s bustling industrial landscape, you’ll find Adel Flanges, a name trusted for precision and resilience. Our focus on crafting superior API 6BX flanges stems from a deep understanding of the demands faced by the oil and gas sector. We are dedicated to providing our clients with components that are not just products, but integral parts of our commitment to safety and operational excellence, ensuring that critical connections are secure.

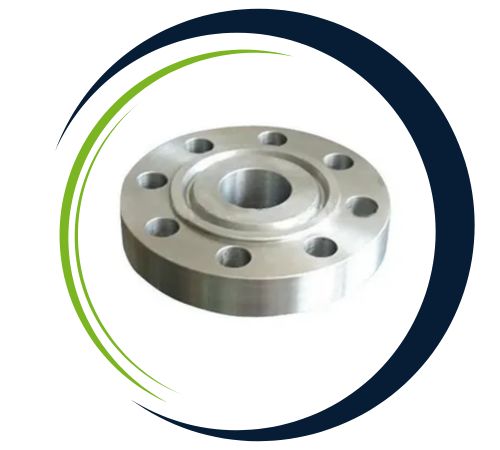

A 6BX flange is engineered for strength, typically forged from high-grade carbon or alloy steel. Its composition is designed to guarantee outstanding mechanical properties, including high tensile strength and remarkable toughness. This robust construction allows it to reliably withstand extreme pressures, severe temperatures, and harsh environments without compromising its structural integrity, making it a cornerstone of dependable operations.
| Material Specification Of : | API 6A 6BX Flanges |
|---|---|
| Special Types Of Flanges : | Nipoflange, Elboflange, Latroflange, Swivel Flange, Expanding Flange, Reducing Flange, Weldoflange |
| Marking Standard | Name of Manufacturer Schedule Type of Flange Facing Nominal Pipe Size Pressure Class ASME B16 Designation |
| Bolt Type | high strength bolts medium strength bolts low strength bolts |
| European Standard Flanges | JIS B2220 Flanges (5k to 30k) and KS1503 flanges |
| Russian-Standard Flanges | GOST 12820 / 12821-80, DIN, UNI, EN 1092-1 |
| South African Standard Flanges | SANSflanges And SABS flanges |
| Standard Cover : | pressure ratings & temperature ratings, materials, marking, dimensions, weight, tolerances, testing |
| Contact Faces | RTJ (Ring Type Joint), FF (Flat Face), RF (Raised Face), T/G (Tongue And Groove ), M/F (Male And Female) |
| Size Chart | Normal Pipe Size 1/2 to NPS 24″ |
| Thickness | Normal Pipe Size ≤ 18 |
| Bore Diameter | Normal Pipe ≤ 10 |
| Flanges Standards | EN 1092-1, JIS, ASME B16.5, ASME B16.47 type A, UNI, DIN |
| Pressure Rating | Class 150 To Class 2500 |
| High Temperature | Above 200°C (400°F) For Class 150 Or Above 400°C (750°F) |
| Low Temperature | Above -29 Degree C (−20°F) |
| Common Types Of Flanges: | Slip On (SORF), Weld Neck (WNRF), Blind (BLRF), Lap Joint (Loose), Threaded (NPT), Socket-Weld (SWRF) |
| Surface Finish | smooth, concentric serrated, stock |
| Gaskets Types | Full Face Gasket Flat Ring Gasket Metallic Ring Gakset |
| Advantages Of Pipe Flange | Used to Connect Pipe System Easy Repair Pipe System Assembled Without Welding |
| Normal Pipe Size Of Flange | Working Pressure For Flanges (PSI) | Outside Diameter (O.D>) | Bolt Holes Number | Bolt Holes Diameter | Bolts Length | Ring Gasket For API |
|---|---|---|---|---|---|---|
| 1-13/16″ | 10,000 | 7-3/8″ | 8 | 3/4″ | 5-1/4″ | -151 |
| 1-13/16″ | 15,000 | 8-3/16″ | 8 | 7/8″ | 6″ | -151 |
| 1-13/16″ | 20,000 | 10-1/8″ | 8 | 1″ | 7-3/4″ | -151 |
| 2-1/16″ | 2,000 | 6-1/2″ | 8 | 5/8″ | 5/8″ | R-23 |
| 2-1/16″ | 3,000/5,000 | 8-1/2″ | 8 | 7/8″ | 7/8″ | R-24 |
| 2-1/16″ | 10,000 | 7-7/8″ | 8 | 3/4″ | 3/4″ | -152 |
| 2-1/16″ | 15,000 | 8-3/4″ | 8 | 7/8″ | 7/8″ | -152 |
| 2-1/16″ | 20,000 | 11-5/16″ | 8 | 1-1/8″ | 1-1/8″ | -152 |
| 2-9/16″ | 2,000 | 7-1/2″ | 8 | 3/4″ | 5-1/4″ | R-26 |
| 2-9/16″ | 3,000/5,000 | 9-5/8″ | 8 | 1″ | 7″ | R-27 |
| 2-9/16″ | 10,000 | 9-1/8″ | 8 | 7/8″ | 6-1/4″ | -153 |
| 2-9/16″ | 15,000 | 10″ | 8 | 1″ | 7″ | -153 |
| 2-9/16″ | 20,000 | 12-13/16″ | 8 | 1-1/4″ | 9-1/2″ | -153 |
| 3-1/8″ | 2,000 | 8-1/4″ | 8 | 3/4″ | 5-1/2″ | R-31 |
| 3-1/8″ | 3,000 | 9-1/2″ | 8 | 7/8″ | 6-1/4″ | R-31 |
| 3-1/8″ | 5,000 | 10-1/2″ | 8 | 1-1/8″ | 7-3/4″ | R-35 |
| 3-1/16″ | 10,000 | 10-5/8″ | 8 | 1″ | 7-1/4″ | -154 |
| 3-1/16″ | 15,000 | 11-5/16″ | 8 | 1-1/8″ | 8″ | -154 |
| 3-1/16″ | 20,000 | 14-1/16″ | 8 | 1-3/8″ | 10-3/4″ | -154 |
| 4-1/16″ | 2,000 | 10-3/4″ | 8 | 7/8″ | 6-1/4″ | R-37 |
| 4-1/16″ | 3,000 | 11-1/2″ | 8 | 1-1/8″ | 7-1/2″ | R-37 |
| 4-1/16″ | 5,000 | 12-1/4″ | 8 | 1-1/8″ | 8-3/8″ | -155 |
| 4-1/16″ | 20,000 | 17-9/16″ | 8 | 1-3/4″ | 12-3/4″ | -155 |
| 5-1/8″ | 5,000 | 14-3/4″ | 8 | 1-1/2″ | 10-3/4″ | R-44 |
| 7-1/16″ | 2,000 | 14″ | 12 | 1″ | 7-1/2″ | R-45 |
| 7-1/16″ | 3,000 | 15″ | 12 | 1-1/8″ | 8-1/2″ | R-45 |
| 7-1/16″ | 5,000 | 15-1/2″ | 12 | 1-3/8″ | 11-1/4″ | R-46 |
| 7-1/16″ | 10,000 | 18-7/8″ | 12 | 1-1/2″ | 11-3/4″ | -156 |
| 7-1/16″ | 15,000 | 19-7/8″ | 16 | 1-1/2″ | 13″ | -156 |
| 7-1/16″ | 20,000 | 24-13/16″ | 16 | 2″ | 17-3/4″ | -156 |
| 9″ | 2,000 | 16-1/2″ | 12 | 1-1/8″ | 8-1/2″ | R-49 |
| 9″ | 3,000 | 18-1/2″ | 12 | 1-3/8″ | 9-1/2″ | R-49 |
| 9″ | 5,000″ | 19″ | 12 | 1-5/8″ | 12-1/2″ | R-50 |
| 9″ | 10,000 | 21-3/4″ | 16 | 1-1/2″ | 13-1/4″ | -157 |
| 9″ | 15,000 | 25-1/2″ | 16 | 1-7/8″ | 16″ | -157 |
| 11″ | 2,000 | 20″ | 16 | 1-1/4″ | 9-1/4″ | R-53 |
| 11″ | 3,000 | 21-1/2″ | 16 | 1-3/8″ | 10″ | R-53 |
| 11″ | 5,000 | 23″ | 12 | 1-7/8″ | 14-1/4″ | R-54 |
| 11″ | 10,000 | 25-3/4″ | 16 | 1-3/4″ | 15-3/8″ | -158 |
| 11″ | 15,000 | 32″ | 20 | 2″ | 19-1/2″ | -158 |
| 13-5/8″ | 2,000 | 22″ | 20 | 1-1/4″ | 9-1/2″ | R-57 |
| 13-5/8″ | 3,000 | 24″ | 20 | 1-3/8″ | 10-3/4″ | R-57 |
| 13-5/8″ | 5,000 | 26-1/2″ | 16 | 1-5/8″ | 12-3/4″ | -160 |
| 13-5/8″ | 10,000 | 30-1/4″ | 20 | 1-7/8″ | 17-3/4″ | -159 |
| 13-5/8″ | 15,000 | 34-7/8″ | 20 | 2-1/4″ | 21″ | -159 |
| 16-3/4″ | 2,000 | 27″ | 20 | 1-1/2″ | 10-3/4″ | R-65 |
| 16-3/4″ | 3,000 | 27-3/4″ | 20 | 1-5/8″ | 12-1/4″ | R-66 |
| 16-3/4″ | 5,000 | 30-3/8″ | 16 | 1-78″ | 14-3/4″ | -162 |
| 16-3/4″ | 10,000 | 34-5/16″ | 24 | 1-7/8″ | 17-3/4″ | -162 |
| 18-3/4″ | 5,000 | 35-5/8″ | 20 | 2″ | 18″ | -163 |
| 16-3/4″ | 10,000 | 40-15/16″ | 24 | 2-1/4″ | 23″ | -164 |
| 20-3/4″ | 3,000 | 33-3/4″ | 20 | 2″ | 15-1/4″ | R-74 |
| 21-1/4″ | 2,000 | 32″ | 24 | 1-5/8″ | 12-1/2″ | R-73 |
| 21-1/4″ | 5,000 | 39″ | 24 | 2″ | 19″ | -165 |
| 21-1/4″ | 10,000 | 45″ | 24 | 2-1/2″ | 24-3/4″ | -166 |
| 26-3/4″ | 2,000 | 41″ | 20 | 1-3/4″ | 14-1/4″ | -167 |
| 21-1/4″ | 3,000 | 43-3/8″ | 24 | 2″ | 17-1/2″ | -168 |

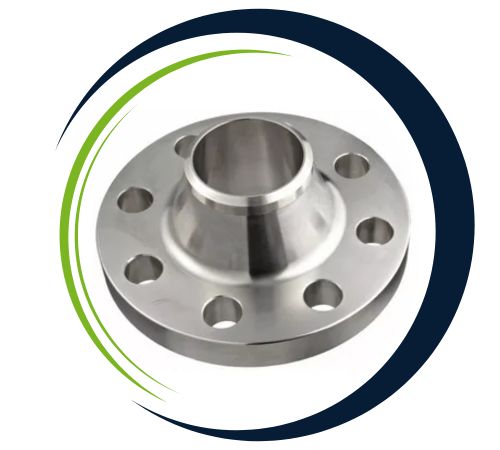

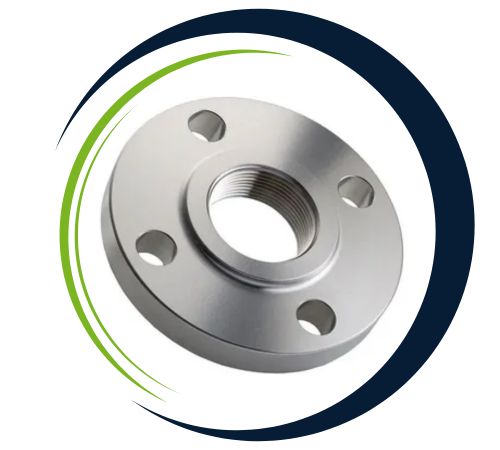

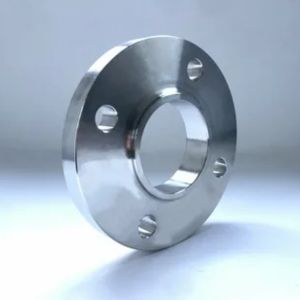

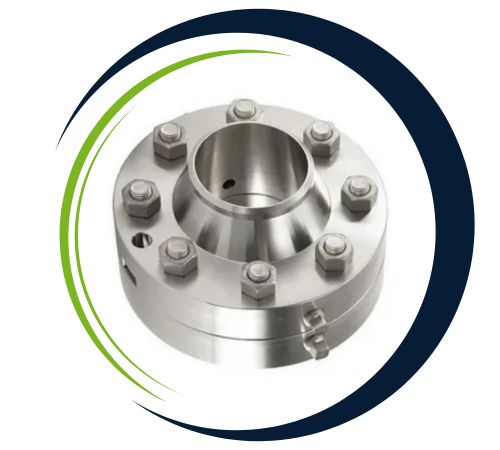

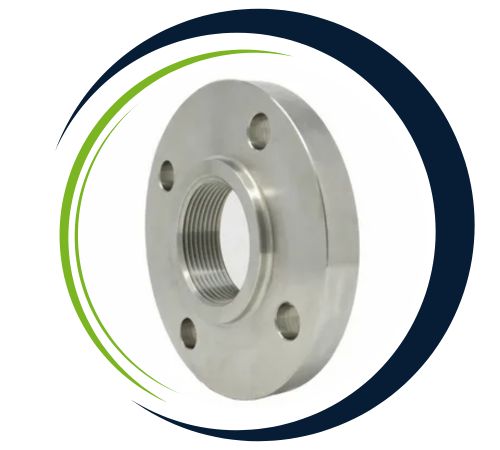

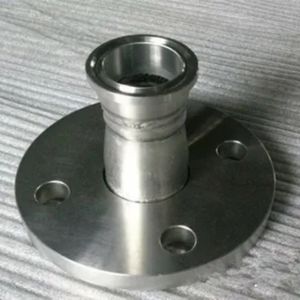

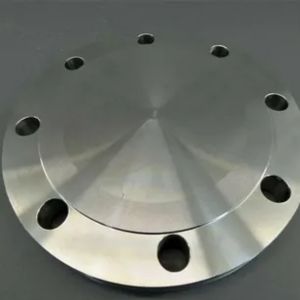

Adel Flanges, a leading supplier in Alexandria, Egypt, offers an extensive selection of API 6BX Flange, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
API 6BX Flanges are widely used in the oil and gas industry, particularly in high-pressure applications such as wellhead systems, subsea equipment, and offshore drilling rigs. These flanges provide reliable, leak-proof connections for critical components like valves, pressure control systems, and pipelines. Designed to withstand extreme pressure (up to 20,000 psi or more), they are essential for ensuring safety and integrity in oilfield operations. API 6BX Flanges are also used in high-temperature environments and corrosive settings, ensuring long-term performance in demanding conditions.
Yes, we offer custom sizes for API 6BX Flange to meet specific project needs. Our team at Adel Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@adelflanges.com.
| Weld Neck, Integral, Blinds, Equivalent | |||
| Maximam Working Pressure | 2000 PSI | 3000 PSI | 5000 PSI |
| Test Pressure | PSI 3000 | PSI 4500 | PSI 7500 |
| Product Spec Levels | 1, 2, 3 and 4 | 1, 2, 3 and 4 | 1, 2, 3 and 4 |
| API Temperature Rating | K (-60 ° C) to Y (+345 ° C) | K (-60 ° C) to Y (+345 ° C) | K (-60 ° C) to Y (+345 ° C) |
| Integral, BLRF, Target BLRF and Test Flanges | |||
| Minimam Yield | 60 000 PSI | 60 000 PSI | 60 000 PSI |
| Minimam Tensile | 85 000 PSI | 85 000 PSI | 85 000 PSI |
| Material | API 60K | API 60K | API 60K |
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
