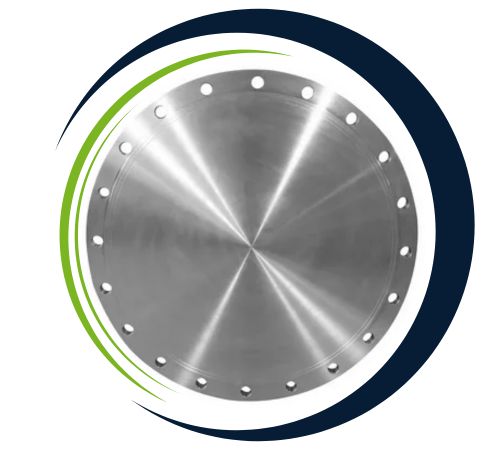

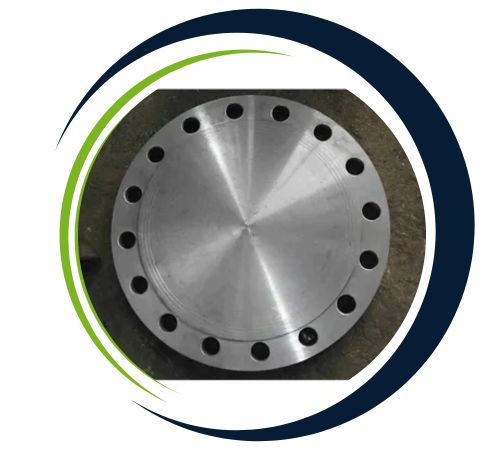

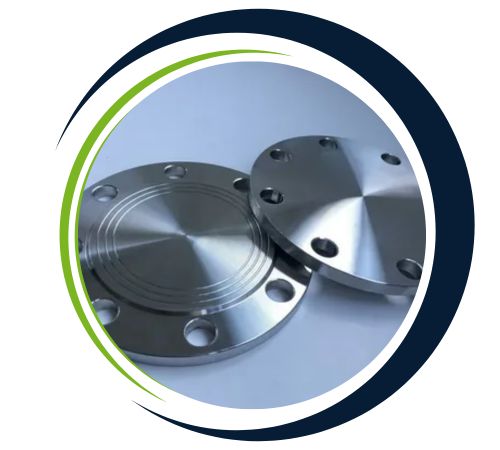

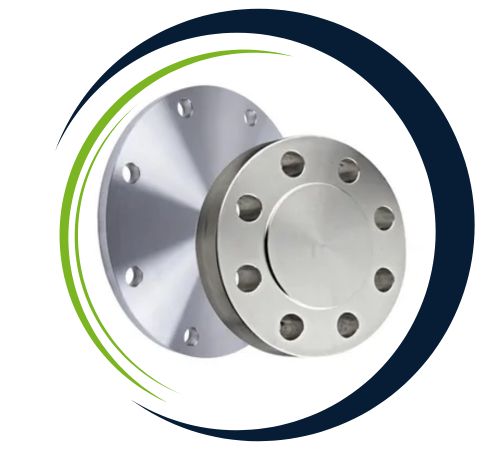

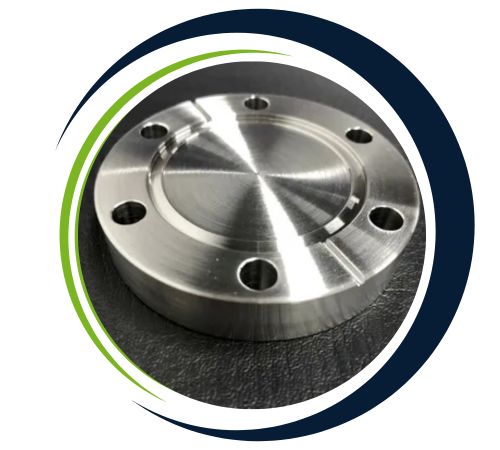

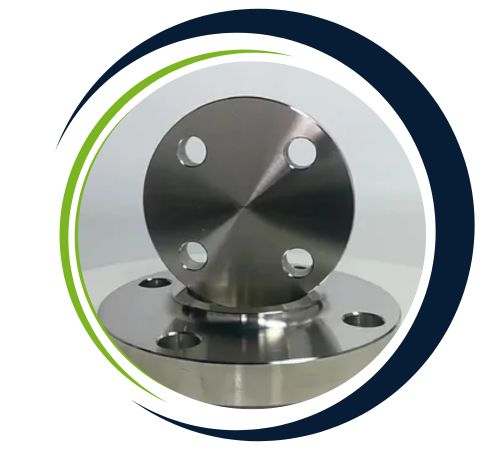

Operating from the industrial heart of Cairo, Egypt, Adel Flanges has established itself as a trusted source for high-integrity pipeline components. Our specialization includes the API – Type 6BX Blind Flanges, rated for an impressive 15,000 PSI. These flanges are meticulously manufactured to meet the most stringent demands, ensuring you receive a product built for reliability and safety in the toughest environments, backed by our commitment to quality and local expertise.
These 15,000 PSI flanges are forged from high-strength materials, typically advanced carbon or low-alloy steel, to withstand immense pressure. Their composition is carefully controlled to ensure exceptional toughness and resistance to deformation. Rigorous heat treatment further enhances their mechanical properties, guaranteeing they meet all the requirements for hardness, tensile strength, and yield strength as defined by the API 6A specification.
Adel Flanges, a leading supplier in Alexandria, Egypt, offers an extensive selection of API – Type 6BX Blind Flanges 15,000 PSI, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Specification Table Of : | API Type 6BX Flange |
| ADNOC Approved Manufacturer Of Standards | ASME B16.36, DIN, AWWA C207, B16.47 Series A & B, BS1560-3.1, EN-1092, ASME B16.48, API605, BS4504, EN1092, UNI, ISO, MSS S44, IS 2062, ISO70051, API, API7S-43, ANSI/ASME B16.5, API7S-15 |
| Temperature Ratings | 150 LB To 2500 LB |
| Size Chart | (1/2″) To (48″) |
| Manufacturing Process |
|
| Face Type Details | Raised Face, Large Tongue & Large Male-Female And Small Male-Female, Groove And Small Tongue Groove, RTJ, Flat Face, Lap-Joint Face. |
| Forging Materials | Stainless Steel, Alloy Steel, Carbon Steel, Duplex Steel & Super Duplex Steel, Cast Iron, Inconel, Mild Steel, Hastelloy, Copper Nickel, Wrought Iron. |
| Thickness | NPS ≤ 18 |
| Flanges High Temperature | Above 200° Celsius (400°F) For 150 Class Or Above 400° Celsius (750°F) |
| JIS Standards | 5K, 10K, 40K, 16K 20K 30K, 63K |
| Our Top Selling Products | Lap Joint, Socket-Weld, Blind, Threaded, Weld Neck, Slip-On |
| Buy Flanges For Pipe Connection | Power Plants Industry Food Processing And Manufacturing Waterworks Systems Nuclear Power Application Municipal Pipe Systems Fossil Fuel Power Plants Oil And Gas Industry |
| Type Of Making Format | Plate /Forged/ Threaded |
| Bore Diameter | NPS ≤ 10 |
| Size | B | OD | C | E1 | Q (MAX.) | G | K | T | J1 | J2 | J3 | J4 | R | BC | N | H | Ring Number |
| BX | |||||||||||||||||
| 1 13/16˝ | 46.8 | 210 | 3 | – | 5.56 | 77.77 | 106 | 45.3 | 97.6 | 71.4 | 47.6 | – | 10 | 160.3 | 8 | 26 | 151 |
| 2 1/16˝ | 53.2 | 220 | 3 | – | 5.95 | 86.23 | 114 | 50.8 | 111.1 | 82.5 | 54.0 | – | 10 | 174.60 | 8 | 26 | 152 |
| 2 9/16˝ | 65.9 | 255 | 3 | – | 6.75 | 102.77 | 133 | 57.2 | 128.6 | 100.0 | 57.1 | – | 10 | 200.00 | 8 | 29 | 153 |
| 3 1/16˝ | 78.6 | 290 | 3 | – | 7.54 | 119.00 | 154 | 64.3 | 154.0 | 122.2 | 63.5 | – | 10 | 230.20 | 8 | 32 | 154 |
| 4 1/16˝ | 104.0 | 360 | 3 | – | 8.33 | 150.62 | 194 | 78.6 | 195.3 | 158.7 | 73.0 | – | 10 | 290.50 | 8 | 39 | 155 |
| 5 1/8˝ | 131.0 | 420 | 3 | 9.5 | 9.53 | 176.66 | 225 | 98.5 | 244.5 | 200.0 | 81.8 | 6.4 | 16 | 342.90 | 12 | 42 | 169 |
| 7 1/16˝ | 180.2 | 505 | 6 | 11.1 | 11.11 | 241.83 | 305 | 119.1 | 325.4 | 276.2 | 92.1 | 7.9 | 16 | 428.60 | 16 | 42 | 156 |
| 9 ˝ | 229.4 | 650 | 6 | 12.7 | 12.70 | 299.06 | 381 | 146.1 | 431.8 | 349.2 | 123.8 | 14.2 | 16 | 552.40 | 16 | 51 | 157 |
| 11˝ | 280.2 | 815 | 6 | 14.3 | 14.29 | 357.23 | 454 | 187.4 | 584.2 | 427.0 | 235.7 | 12.7 | 16 | 711.20 | 20 | 54 | 158 |
| 13 5/8˝ | 346.9 | 885 | 6 | 15.9 | 15.88 | 432.64 | 541 | 204.8 | 595.3 | 528.6 | 114.3 | 17.5 | 25 | 771.50 | 20 | 61 | 159 |
| 18 3/4˝ | 477.0 | 1160 | 6 | 18.3 | 18.26 | 577.90 | 722 | 255.6 | 812.8 | 730.2 | 155.6 | 35.1 | 25 | 1016.00 | 20 | 80 | 164 |
15,000 PSI, API Type 6BX Blind Flanges are essential parts in high-pressure systems, particularly in the oil, gas, and petrochemical industries. API 6BX Blind Flanges provide safe end closures, effectively isolating flow in pipelines, pressure vessels and high-stress equipment. Their construction facilitates effortless disassembly during maintenance or pressure testing without compromising leak prevention during critical operations. API 6BX Blind Flanges are used extensively in offshore drilling rigs, refineries, and wellhead assemblies, where safety and operational efficiency depend on a consistent, leak-free seal. Their toughness and versatility make them a first choice in the most demanding high-pressure applications.
| NPS In Inch. | DN In MM | Flange Outside Daimeter A In MM | Flange Thickness D In MM | API 6a SORF Flange Weight In KG | API 6a WN Flange Weight In KG | API 6a BLRF Flange Weight In KG |
| 1/ 2 | 15 | 88.9 | 11.2 | 0.4 | 0.5 | 0.4 |
| 3/ 4 | 20 | 98.6 | 12.7 | 0.6 | 0.7 | 0.6 |
| 1 | 25 | 108 | 14.2 | 0.8 | 1 | 0.9 |
| 1 1/ 4 | 32 | 117.3 | 15.7 | 1 | 1.3 | 1.2 |
| 1 1/ 2 | 40 | 127 | 17.5 | 1.3 | 1.7 | 1.5 |
| 2 | 50 | 152.4 | 19.1 | 2.1 | 2.6 | 2.4 |
| 2 1/ 2 | 65 | 177.8 | 22.4 | 3.3 | 4.1 | 3.9 |
| 3 | 80 | 190.5 | 23.9 | 3.9 | 4.9 | 4.9 |
| 3 1/ 2 | 90 | 215.9 | 23.9 | 4.8 | 6.1 | 6.2 |
| 4 | 100 | 228.6 | 23.9 | 5.3 | 6.8 | 7.0 |
| 5 | 125 | 254 | 23.9 | 6.1 | 8.6 | 8.6 |
| 6 | 150 | 279.4 | 25.4 | 7.5 | 10.6 | 11.3 |
| 8 | 200 | 342.9 | 28.4 | 12.1 | 17.6 | 19.6 |
| 10 | 250 | 406.4 | 30.2 | 16.5 | 24 | 28.6 |
| 12 | 300 | 482.6 | 31.8 | 26.2 | 36.5 | 43.2 |
| 14 | 350 | 533.4 | 35.1 | 34.6 | 48.4 | 58.1 |
| 16 | 400 | 596.9 | 36.6 | 44.8 | 60.6 | 76.1 |
| 18 | 450 | 635 | 39.6 | 48.9 | 68.3 | 93.7 |
| 20 | 500 | 698.5 | 42.9 | 61.9 | 84.5 | 122.0 |
| 24 | 600 | 812.8 | 47.8 | 86.9 | 115 | 185.0 |
Yes, we offer custom sizes for API – Type 6BX Blind Flanges 15,000 PSI to meet specific project needs. Our team at Adel Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@adelflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
