Based in the heart of Cairo’s industrial sector, Adel Flanges has built a strong reputation for reliability and precision in the manufacturing and supply of essential pipeline components. We take particular pride in our production of the C22.8 flange, a component engineered to meet the demanding standards of various industries. Our commitment is to deliver not just a product, but a dependable solution that ensures the integrity and longevity of your piping systems, backed by our local expertise and dedication to quality.
The C22.8 flange is crafted from a non-alloy quality steel known for its excellent balance of strength and versatility. This specific material composition gives the flange its characteristic durability, allowing it to perform reliably under moderate pressure and temperature conditions. It’s this dependable combination of a robust composition and consistent mechanical properties that makes it a go-to choice for a wide range of general industrial applications where steadfast performance is required.

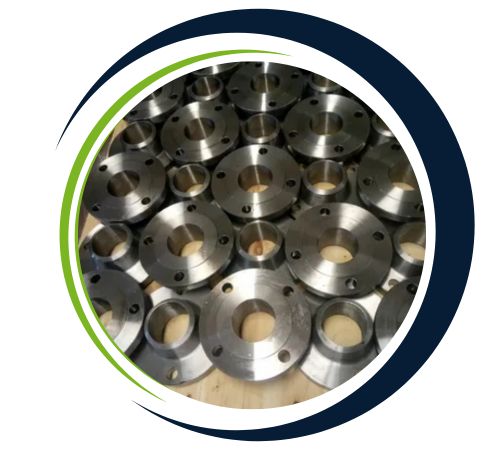

Adel Flanges, a leading supplier in Alexandria, Egypt, offers an extensive selection of C22.8 Flange, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Specifications | C22.8 |
| ASME B16.5 Carbon Steel C22.8 Flanges size range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Carbon Steel C22.8 Flanges Standards | ANSI/ASME B16.5, B16.48, BS4504, B16.47 Series A & B, EN-1092, BS 10, DIN, ASME Flanges, ANSI Flanges, DIN Flanges, BS Flanges, GOST Flanges,EN Flanges |
| Carbon Steel C22.8 Flanges Standard DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| Carbon Steel C22.8 Flanges Standard ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Carbon Steel C22.8 Flanges Standard UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Carbon Steel C22.8 Flanges Standard JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| Carbon Steel C22.8 Flanges Standard EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Forged / Threaded / Screwed / Plate |
| Flange supporting material | Gasket, Ring Joint, Flange Bolts |
| Element / Component | Composition % |
| Carbon ( C ) | 0.18 – 0.23 |
| Manganese ( Mn ) | 0.40 – 0.90 |
| Phosphorus ( P ) | 0.035 max |
| Sulphur ( S ) | 0.030 max |
| Silicon ( Si ) | 0.40 max |
| Aluminium ( Al ) | 0.015 – 0.050 |
| Chromium ( Cr ) | 0.30 max |
| Items | Value |
| Yield Strength ReH N/mm2 | 240 min |
| Tensile Strength Rm N/mm2 | 410 – 540 |
| Elongation ( A ) | 25% min |
| Impact Test ( J ) | 44 min |
The C22.8 flange is widely used in severe industries owing to its excellent corrosion resistance, high strength, and longevity. It is found in petroleum and gas, petrochemical, and marine applications and is used in pipelines, pressure vessels, and heat exchangers where high pressure and high-temperature conditions are encountered. It is suitable for chemical process applications because of its resistance to acidic environments. The C22.8 flange is also used in power plants, desalination plants, and refineries, offering safe and durable connections in systems handling corrosive fluids and high-temperature applications. Its performance and reliability make it a choice of preference for mission-critical infrastructure.
Yes, we offer custom sizes for C22.8 Flange to meet specific project needs. Our team at Adel Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@adelflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
