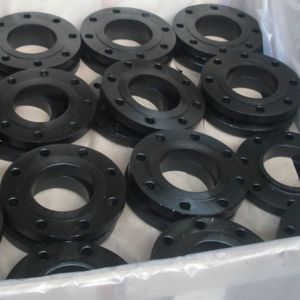

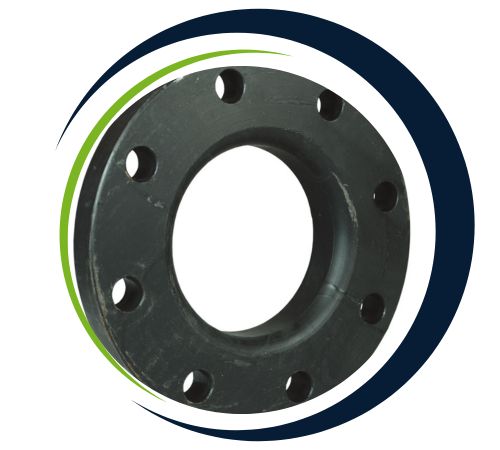

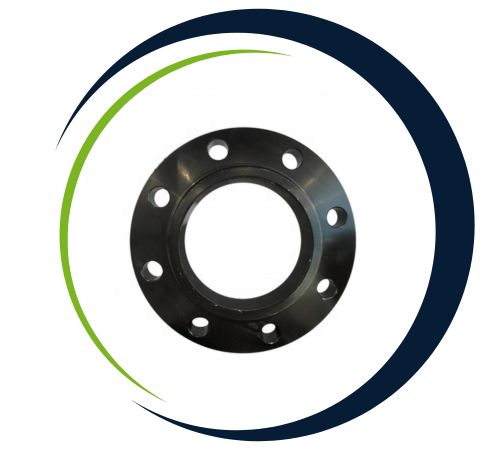

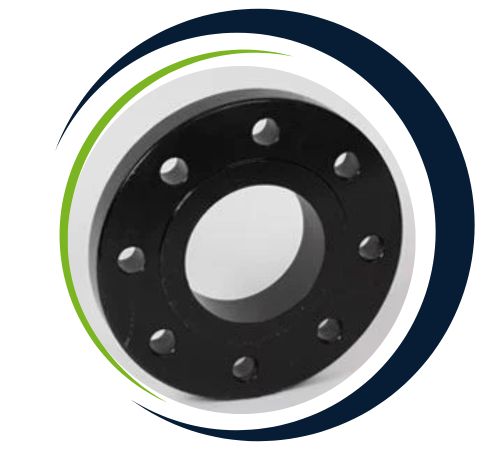

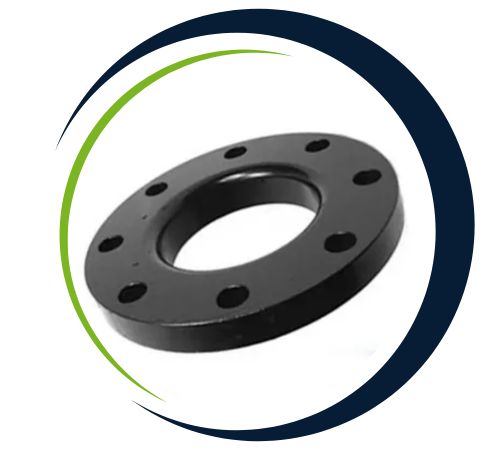

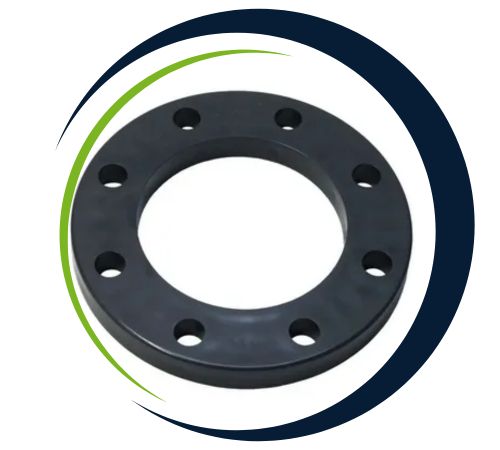

Nestled in the industrial heart of Cairo, Egypt, Adel Flanges has carved out a reputation as a trusted partner for industries requiring unwavering reliability. We specialize in the manufacturing and supply of high-quality carbon steel flat flanges, products that are fundamental to the integrity of countless piping systems. Our commitment extends beyond simple supply; we focus on delivering precision-engineered solutions that meet the rigorous demands of both local and international projects, ensuring every connection we provide is built to last.
The strength of our flat flanges comes from their specific composition, primarily iron and carbon, which is carefully balanced to achieve excellent mechanical properties. This results in a product known for its impressive tensile strength and good hardness, allowing it to withstand high internal pressures. These flanges also offer reliable performance across a range of temperatures, making them a go-to material for demanding environments where durability and structural integrity are non-negotiable for long-term safety.
| Specification | ASTM A694 / ASME SA694 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Grades | Carbon Steel A105, LF2, IS2062, A36, F42, F52, F56, F60, F65, F70, F80 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |

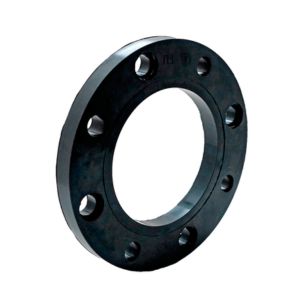

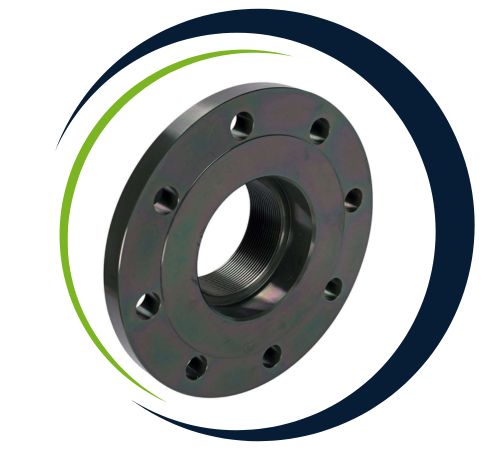

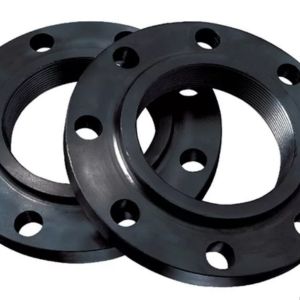

Adel Flanges, a leading supplier in Alexandria, Egypt, offers an extensive selection of Carbon Steel Flat Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Carbon steel flat flanges find extensive application in piping systems for safe connecting of pipes, valves and other devices. Their flat surfaces provide equal pressure distribution, making them perfect for applications demanding less leakage. In common use within the oil, gas, petrochemical and water treatment industries, these flanges are appreciated for their strength, corrosion resistance and heat resistance Simple to fit and to service, and suitable for applications where frequent disassembly or reassembly is needed in order to clean, inspect or repair.
| Size in In | Size in Millimeter | (OD) Outer Diameter | Flange Thick. | Hub OD | Weld Neck Outer Diameter | Welding Neck Length | Bore | RF Diameter | RF Height | PCD | Weld Face |
| A | B | C | D | E | F | G | H | I | J | ||
| 1/2 | 15 | 95 | 12.7 | 38 | 21.3 | 51 | Refer Note | 34.9 | 2 | 66.7 | 1.6 |
| 3/4 | 20 | 115 | 14.3 | 48 | 26.7 | 56 | 42.9 | 2 | 82.6 | 1.6 | |
| 1 | 25 | 125 | 15.9 | 54 | 33.4 | 60 | 50.8 | 2 | 88.9 | 1.6 | |
| 1 1/4 | 32 | 135 | 17.5 | 64 | 42.2 | 64 | 63.5 | 2 | 98.4 | 1.6 | |
| 1 1/2 | 40 | 155 | 19.1 | 70 | 48.3 | 67 | 73 | 2 | 114.3 | 1.6 | |
| 2 | 50 | 165 | 20.7 | 84 | 60.3 | 68 | 92.1 | 2 | 127 | 1.6 | |
| 2 1/2 | 65 | 190 | 23.9 | 100 | 73 | 75 | 104.8 | 2 | 149.2 | 1.6 | |
| 3 | 80 | 210 | 27 | 117 | 88.9 | 78 | 127 | 2 | 168.3 | 1.6 | |
| 3 1/2 | 90 | 230 | 28.6 | 133 | 101.6 | 79 | 139.7 | 2 | 184.2 | 1.6 | |
| 4 | 100 | 255 | 30.2 | 146 | 114.3 | 84 | 157.2 | 2 | 200 | 1.6 | |
| 5 | 125 | 280 | 33.4 | 178 | 141.3 | 97 | 185.7 | 2 | 235 | 1.6 | |
| 6 | 150 | 320 | 35 | 206 | 168.3 | 97 | 215.9 | 2 | 269.9 | 1.6 | |
| 8 | 200 | 380 | 39.7 | 260 | 219.1 | 110 | 269.9 | 2 | 330.2 | 1.6 | |
| 10 | 250 | 445 | 46.1 | 321 | 273 | 116 | 323.8 | 2 | 387.4 | 1.6 | |
| 12 | 300 | 520 | 49.3 | 375 | 323.8 | 129 | 381 | 2 | 450.8 | 1.6 | |
| 14 | 350 | 585 | 52.4 | 425 | 355.6 | 141 | 412.8 | 2 | 514.4 | 1.6 | |
| 16 | 400 | 650 | 55.6 | 483 | 406.4 | 144 | 469.9 | 2 | 571.5 | 1.6 | |
| 18 | 450 | 710 | 58.8 | 533 | 457 | 157 | 533.4 | 2 | 628.6 | 1.6 | |
| 20 | 500 | 775 | 62 | 587 | 508 | 160 | 584.2 | 2 | 685.8 | 1.6 | |
| 24 | 600 | 915 | 68.3 | 702 | 610 | 167 | 692.2 | 2 | 812.8 | 1.6 |
| Welding Neck Flange Bores (in inch) | ||||||||||||||
| NPS | O D | Sch 10 | Sch 20 | Sch 30 | Std. Wall | Sch 40 | Sch 60 | Extra Strong | Sch 80 | Sch 100 | Sch 120 | Sch 140 | Sch 160 | Double Extra Strong |
| 1/2” | 0.840 | 0.674 | 0.622 | 0.622 | 0.546 | 0.546 | 0.464 | 0.252 | ||||||
| 3/4” | 1.050 | 0.884 | 0.824 | 0.824 | 0.742 | 0.742 | 0.612 | 0.434 | ||||||
| 1” | 1.315 | 1.097 | 1.049 | 1.049 | 0.957 | 0.957 | 0.815 | 0.599 | ||||||
| 1.1/4” | 1.660 | 1.442 | 1.380 | 1.380 | 1.278 | 1.278 | 1.160 | 0.896 | ||||||
| 1.1/2” | 1.900 | 1.682 | 1.610 | 1.610 | 1.500 | 1.500 | 1.338 | 1.100 | ||||||
| 2” | 2.375 | 2.157 | 2.067 | 2.067 | 1.939 | 1.939 | 1.687 | 1.503 | ||||||
| 2.1/2” | 2.875 | 2.635 | 2.469 | 2.469 | 2.323 | 2.323 | 2.125 | 1.771 | ||||||
| 3” | 3.500 | 3.260 | 3.068 | 3.068 | 2.900 | 2.900 | 2.624 | 2.300 | ||||||
| 3-1/2” | 4.000 | 3.760 | 3.548 | 3.548 | 3.364 | 3.364 | 2.728 | |||||||
| 4” | 4.500 | 4.260 | 4.026 | 4.026 | 3.826 | 3.826 | 3.624 | 3.438 | 3.152 | |||||
| 5” | 5.563 | 5.295 | 5.047 | 5.047 | 4.813 | 4.813 | 4.563 | 4.313 | 4.063 | |||||
| 6” | 6.625 | 6.357 | 6.065 | 6.065 | 5.761 | 5.761 | 5.501 | 5.187 | 4.897 | |||||
| 8” | 8.625 | 8.329 | 8.125 | 8.071 | 7.981 | 7.981 | 7.813 | 7.625 | 7.625 | 7.437 | 7.187 | 7.001 | 6.813 | 6.875 |
| 10” | 10.750 | 10.420 | 10.250 | 10.136 | 10.020 | 10.020 | 9.750 | 9.750 | 9.562 | 9.312 | 9.062 | 8.750 | 8.500 | 8.750 |
| 12” | 12.750 | 12.390 | 12.250 | 12.090 | 12.000 | 11.938 | 11.626 | 11.750 | 11.374 | 11.062 | 10.750 | 10.500 | 10.126 | 10.750 |
| 14” | 14.000 | 13.500 | 13.376 | 13.250 | 13.250 | 13.124 | 12.812 | 13.000 | 12.500 | 12.124 | 11.814 | 11.500 | 11.188 | |
| 16” | 16.000 | 15.500 | 15.376 | 15.250 | 15.250 | 15.000 | 14.688 | 15.000 | 14.312 | 13.938 | 13.564 | 13.124 | 12.812 | |
| 18” | 18.000 | 17.500 | 17.376 | 17.124 | 17.250 | 16.876 | 16.500 | 17.000 | 16.124 | 15.688 | 15.250 | 14.876 | 14.438 | |
| 20” | 20.000 | 19.500 | 19.250 | 19.000 | 19.250 | 18.812 | 18.376 | 19.000 | 17.938 | 17.438 | 17.000 | 16.500 | 16.062 | |
| 24” | 24.000 | 23.500 | 23.250 | 22.876 | 23.250 | 22.624 | 22.062 | 23.000 | 21.562 | 20.938 | 20.376 | 19.876 | 19.312 | |
| 30” | 30.000 | 29.376 | 29.000 | 28.750 | 29.250 | 29.000 | ||||||||
| 36” | 36.000 | 35.376 | 35.000 | 34.750 | 35.250 | 34.500 | 35.000 | |||||||
| 42” | 42.000 | 41.250 | 41.000 | |||||||||||
Yes, we offer custom sizes for Carbon Steel Flat Flanges to meet specific project needs. Our team at Adel Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@adelflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
