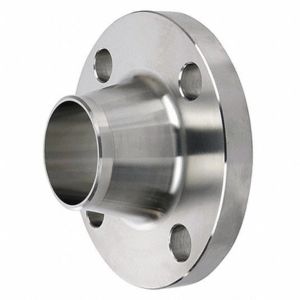

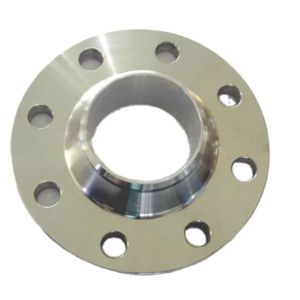

Nestled in the industrial heart of Cairo, Egypt, Adel Flanges has established itself as a trusted name for robust and reliable piping solutions. We take particular pride in our expertise with Monel Weldneck Flanges, components engineered for situations where failure is not an option. Our commitment lies in providing clients across the region with more than just a product; we deliver a promise of durability and performance, backed by local accessibility and a deep understanding of the demanding environments our clients operate within.
Monel’s unique character comes from its nickel-copper composition, which grants it a natural toughness far surpassing ordinary steels. This alloy maintains exceptional strength and hardness, even when subjected to extreme temperature fluctuations. Most importantly, it possesses a legendary resistance to corrosion, standing strong against saltwater, chemical corrosives, and caustic solutions. This combination of mechanical integrity and inertness is what makes it such a vital material for critical applications.
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MAlloy S44, ISO70051, JIS400220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 400 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MAlloy SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MAlloy SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MAlloy SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B564 Monel K500 Flanges The other standard: AWWA C207; EN1092-1, GOST12820, JIS 400220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Grades | Monel 400, K500 |
Adel Flanges, a leading supplier in Alexandria, Egypt, offers an extensive selection of Monel Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Monel Weldneck Flanges are widely used in applications where strength and corrosion resistance are important. In the marine industry they are ideal for pipelines, pumps, valves and other marine applications. And are highly resistant to saltwater corrosion. In chemical applications these flanges deal with chemical corrosion and high temperatures, making them suitable for reactors, tanks and exchangers. The oil and gas industry benefits from Monel weldneck flanges in high-pressure acid gas. Where it ensures leak resistance safe connections and its durability and durability make it extremely valuable for critical applications under conditions of in the strong.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
| Monel K500 | 2.4375 | N05500 | – | – | – | – | – |
Yes, we offer custom sizes for Monel Weldneck Flanges to meet specific project needs. Our team at Adel Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@adelflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
