Welcome to Adel Flanges, your trusted partner in Cairo, Egypt, for robust industrial solutions. We specialize in the manufacturing and supply of high-quality S235JRG2 flanges, engineered to meet the demanding needs of various sectors. Our commitment lies in delivering reliable components that form the essential connections within your critical piping systems. With a focus on precision and durability, we ensure that every flange leaving our facility is built to perform, supporting the backbone of Egypt’s growing infrastructure and industrial projects with proven strength and dependability.
The S235JRG2 grade is a non-alloy structural steel known for its excellent balance of strength and formability. Its composition, primarily iron with controlled levels of carbon, manganese, and silicon, provides dependable mechanical properties. This flange material offers a minimum yield strength of 235 MPa, ensuring it can withstand significant pressure and load without deforming. Combined with good impact toughness, even at lower temperatures, it delivers the reliable performance needed for creating secure and long-lasting connections in a wide array of structural and piping applications.

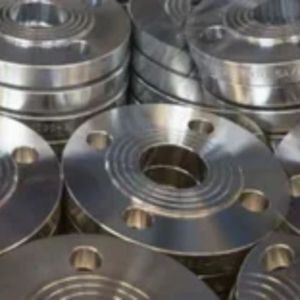

Adel Flanges, a leading supplier in Alexandria, Egypt, offers an extensive selection of S235jrg2 Flange, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | API7S-15, API7S-43, API605, ANSI/ASME B16.5, B16.47 Series A & B, B16.48, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, EN1092 |
| Pressure Rating ANSI | 600 LBS, 900 LBS, 150 LBS, 2500 LBS, 300 LBS, 1500 LBS |
| Pressure Calculation in DIN | 16Bar 6Bar 25Bar 40Bar 10Bar / PN10 PN16 PN6 PN25 PN64 PN40 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Anti-rust Paint, Zinc Plated,Oil Black Paint, Cold and Hot Dip Galvanized, Yellow Transparent |
| Most common types | Forged / Threaded / Screwed / Plate |
| C | Si | Mn | Ni | P | S | Cr | Mo | Al | – |
| max 0.2 | max 0.55 | max 1.4 | max 0.3 | max 0.045 | max 0.045 | max 0.3 | max 0.08 | min 0.02 | Cr+Mo+Ni < 0.48 |
| Minimum yield strength Reh MPa | Tensile strength Rm MPa | Minimum elongation – A Lo = 5,65 * √So (%) | Notch impact test | |||||||||||
| Steel grade | Nominal thickness mm | Nominal thickness mm | Nominal thickness mm | Temperature | Min. absorbed energy | |||||||||
| ≤16 | >16 ≤40 | >40 ≤63 | >63 ≤80 | >80 ≤100 | >100 ≤125 | >3 ≤100 | >100 ≤125 | >3 ≤40 | >40 ≤63 | >63 ≤100 | >100 ≤125 | °C | J | |
| S235JR | 235 | 225 | 215 | 195 | 360-510 | 350-500 | 26 | 25 | 24 | 22 | +20 | 27 | ||
The S235JRG2 flange is widely used across construction, structural engineering, and pipeline projects due to its excellent weldability, durability, and strength. It serves as a reliable connection point in piping systems, enabling secure joins between pipes, valves, and other equipment. In structural applications, it’s commonly used in frameworks, bridges, and building structures. Its compatibility with EN 10025 standards makes it suitable for both low-stress and moderate-stress environments, particularly in industries like oil and gas, water treatment, and general construction where dependable performance is essential.
Yes, we offer custom sizes for S235jrg2 Flange to meet specific project needs. Our team at Adel Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@adelflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
