Strategically located in the bustling industrial heart of Cairo, Egypt, Adel Flanges has built a reputation for reliability and precision as a trusted manufacturer and supplier. We specialize in crafting high-quality Stainless Steel 304 Flanges, engineered to meet the rigorous demands of various industries. Our commitment extends beyond mere supply; we provide robust piping solutions that ensure lasting integrity and seamless performance in even the most challenging environments, making us a dependable partner for projects both locally and across international markets.
The exceptional versatility of our Stainless Steel 304 Flanges stems from their carefully balanced composition and robust mechanical properties. Primarily composed of chromium and nickel, this austenitic stainless steel offers a well-regarded combination of high strength and impressive corrosion resistance. It maintains excellent toughness and durability across a wide temperature range, making it remarkably reliable. This inherent strength allows our flanges to withstand significant pressure and stress, ensuring a secure and long-lasting connection in your piping systems, which is fundamental to operational safety and efficiency.
| Specifications List | ASTM A182 / ASME SA182 |
|---|---|
| Class / Pressure Rating | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) |
| ASTM Standards | ANSI/ASME B16.5, B16.48, BS4504, B 16.47 Series A & B, BS 10, EN-1092, DIN, etc. |
| Standard s | ANSI, ASME, BS, DIN, EN etc. |

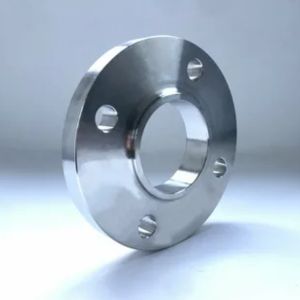

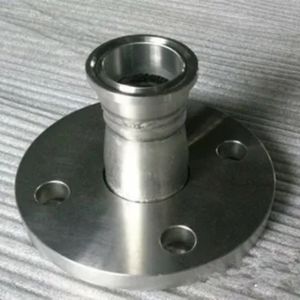

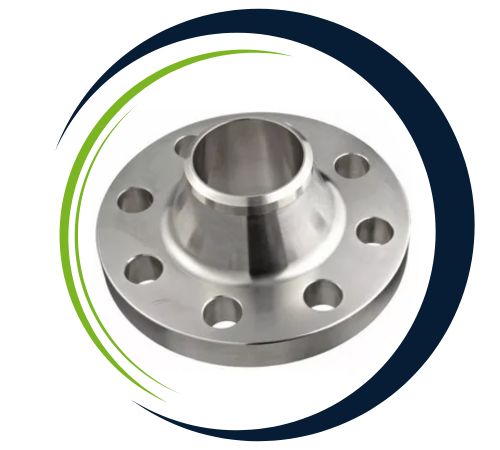

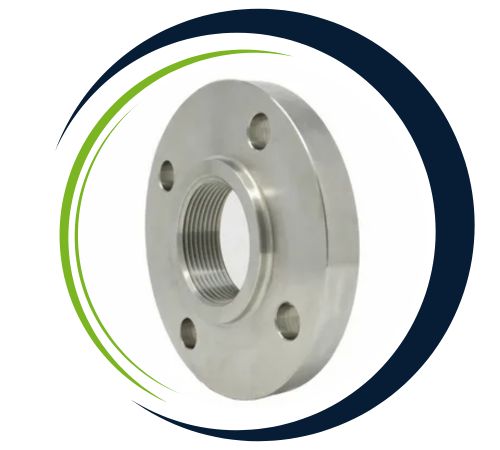

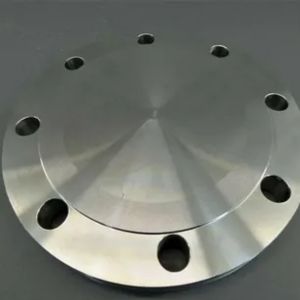

Adel Flanges, a leading supplier in Alexandria, Egypt, offers an extensive selection of Stainless Steel 304 flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
|---|---|---|---|---|---|---|---|---|---|
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Stainless Steel 304 flanges are widely used across various industries due to their exceptional corrosion resistance, durability, and ease of fabrication. Commonly applied in piping systems, they connect pipes, valves, pumps, and other equipment, ensuring leak-free operation in high- and low-temperature environments. Their versatility makes them suitable for the chemical, petrochemical, and oil and gas industries, as well as food processing and pharmaceuticals, where sanitation and hygiene are critical. Additionally, they perform well in marine applications due to their resistance to rust and corrosion.
| NPS (in.) | Stainless Steel 304 Flanges Dimensions | ||||
|---|---|---|---|---|---|
| Dia. of Flange (in.) | No. of Bolts | Dia. of Bolts (in.) | Dia. of Bolt Holes (in.) | Bolt Circle (in.) | |
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
Yes, we offer custom sizes for Stainless Steel 304 flanges to meet specific project needs. Our team at Adel Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@adelflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
