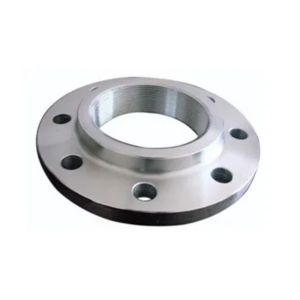

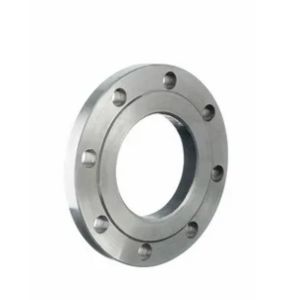

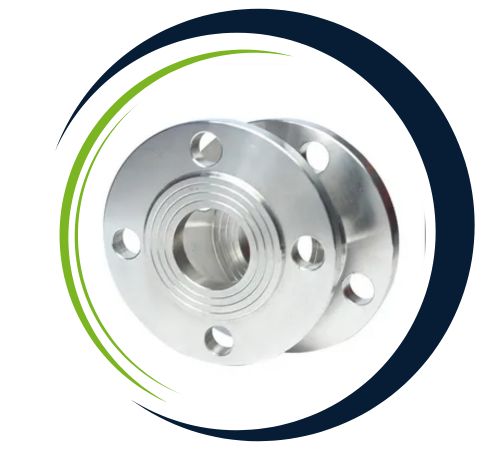

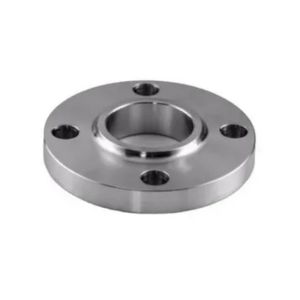

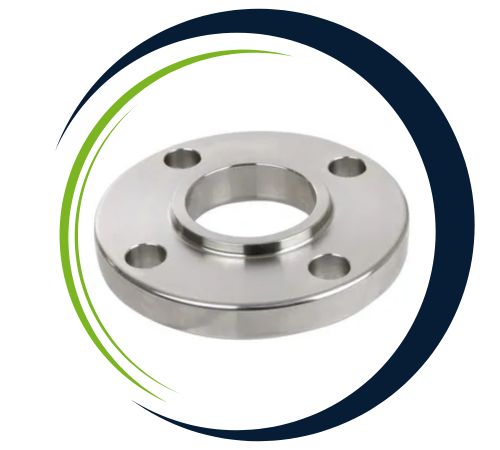

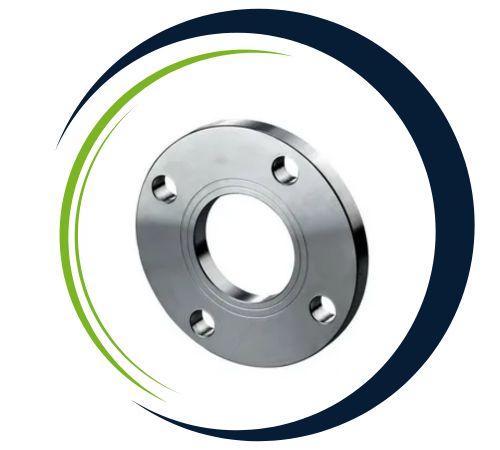

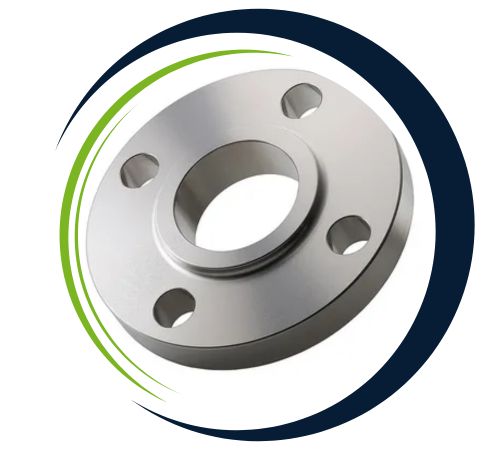

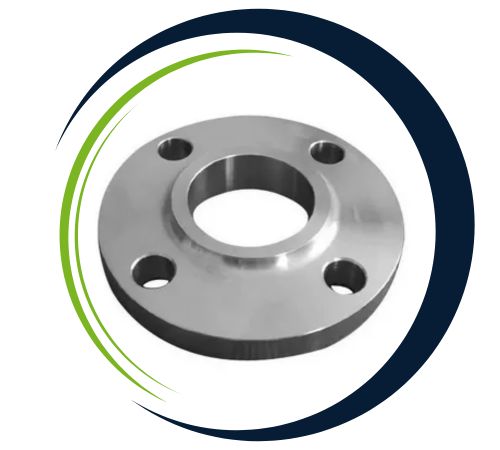

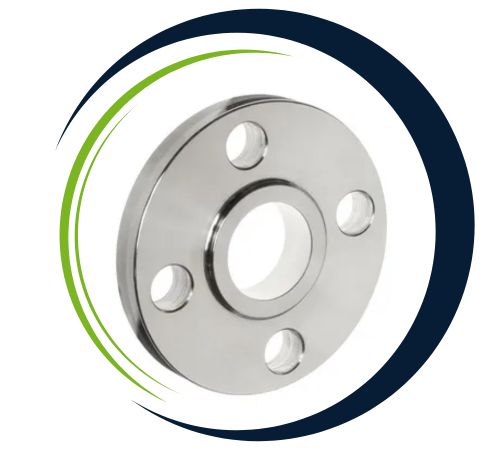

Titanium Flat Flanges are expertly crafted components that ensure secure, leak-proof connections in piping systems, especially those that deal with moderate pressure and temperature. Made from top-notch titanium alloys, these flanges boast remarkable corrosion resistance, lightweight strength, and impressive durability, even in tough industrial settings. Their flat, smooth, and compact design makes installation and alignment with pipes and fittings a breeze. Because of their reliability, long lifespan, and cost-effectiveness, Titanium Flat Flanges are a go-to choice for systems that need strong, corrosion-resistant, and structurally sound flange connections.
These flanges are made from high-quality titanium alloys, celebrated for their exceptional corrosion resistance, impressive strength-to-weight ratio, and thermal stability. They deliver outstanding tensile and yield strength, along with remarkable resistance to fatigue and chemical exposure. The flat design helps distribute pressure evenly across the flange surface, boosting mechanical stability and reducing stress. Thanks to titanium’s natural resistance to chlorides, seawater, and harsh chemicals, these flanges promise long-lasting performance. They also offer good weldability and structural integrity, making them perfect for demanding environments where durability and precision are essential.
| Product Name | Titanium Flat Flanges |
|---|---|
| Size Range | 1/2″ (15 NB) to 48″ (1200NB) |
| Class / Pressure Rating | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standards / Dimensions | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, BS, GOST, MSS SP-44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605 |
| Titanium Flat Face Flanges / Connection Type | Flat Face Flange (FF), Raised Face Flange (RF), Ring Joint Flange (RTJ), Lap Joint Flange, Male and Female Flange (M&F), Large and Small Tongue-and-Groove Flange (T&G) |
| Dimensions | ANSI B16.5, ANSI B16.47 Series A & B, ASA, API-605, MSS SP44, AWWA, Custom Drawings |
| Custom Design | As per your drawing | AS, BS, ANSI, DIN, JIS | Equal and Reducing Configurations |
| Material Test Certificates (MTC) | As per EN 10204 3.2 and EN 10204 3.1, Test Certificates certifying NACE MR0175, NACE MR0103 |
| Test Certificates | 100% Radiography Test Report, EN 10204/3.1B, Raw Materials Certificate, Third Party Inspection Report, etc |
| Tests | Hydrostatic testing machine, Direct-reading Spectrograph, UI trasonic flaw detector, X-ray detector, Magnetic particle detector |
| Equipment / Machines | Press machine, Pushing Machine, Bending machine, Sand-blasting machine, electric bevelling machine, etc. |
Adel Flanges, a leading supplier in Alexandria, Egypt, offers an extensive selection of Titanium Flat Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Titanium Flat Flanges find their place in various industries, including chemical processing, marine engineering, desalination plants, aerospace, oil & gas, and water treatment. Their corrosion resistance makes them perfect for pipelines that handle saline, acidic, or chemically reactive fluids. In marine and offshore applications, they reliably withstand seawater conditions, while in the chemical and petrochemical sectors, they ensure safe and efficient flow operations. Additionally, they are utilized in lightweight aerospace components, heat exchangers, pressure lines, and general-purpose applications.
| STANDARD | UNS | WERKSTOFF NR. |
| Titanium Gr 2 | R50400 | 3.7035 |
| Titanium Gr 5 | R56400 | 3.7165 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 1 | .08 Max | .03 Max | .18 Max | .015 Max | Bal | .20 Max |
| Titanium Grade 4 | .08 Max | .05 Max | .40 Max | .015 Max | Bal | .50 Max |
| Titanium Grade 7 | .08 Max | .03 Max | .25 Max | .015 Max | Bal | .30 Max |
| Titanium Grade 9 | .08 Max | .03 Max | .15 Max | .015 Max | – | .25 Max |
| Titanium Grade 12 | .08 Max | .03 Max | .25 Max | 0.15 Max | – | .30 Max |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 4.5 G/Cm3 | 1665 °C (3030 °F) | Psi – 39900 , MPa – 275 | Psi – 49900 , MPa – 344 | 20 % |
| 4.43 G/Cm3 | 1632 °C (2970 °F) | Psi – 128000 , MPa – 880 | Psi – 138000 , MPa – 950 | 14 % |
Yes, we offer custom sizes for Titanium Flat Flanges to meet specific project needs. Our team at Adel Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@adelflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
