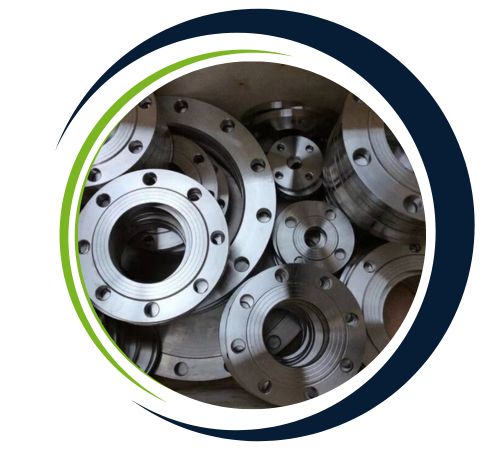

Adel Flanges, located in Cairo, Egypt, has built a solid reputation as a manufacturer and supplier of top-notch Titanium Gr 5 Flanges. These flanges are celebrated for their durability, precision, and outstanding performance in demanding industrial settings. The company is dedicated to meeting global standards and employs cutting-edge production methods to guarantee exceptional strength, corrosion resistance, and reliability. Adel Flanges caters to a variety of sectors, offering products designed to endure extreme temperatures and pressures, making them perfect for tough operations. Their Titanium Gr 5 Flanges are known for their consistent quality, long lifespan, and excellent compatibility with different piping and equipment systems.
Titanium Gr 5 Flanges are mainly made from titanium, combined with 6% aluminum and 4% vanadium, which creates a well-rounded mix of strength, lightweight characteristics, and corrosion resistance. These flanges boast impressive tensile and yield strength, along with remarkable fatigue performance and thermal stability. Their exceptional mechanical properties enable them to maintain structural integrity even under high-temperature and high-pressure conditions. Additionally, Titanium Gr 5 offers good weldability and toughness, making these flanges suitable for a wide range of engineering and industrial applications that demand reliability and efficiency.
| Standards | GOST Flange, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092, BS, BS4504, BS 10, EN-1092, DIN, ANSI, ASME, DIN, MSS S44, ISO70051, ANSI/ASME B16.5, ASME/ANSI B16.5/16.36/16.47A/16.47B, B16.47 Series A & B, B16.48, EN |
|---|---|
| Pressure Rating ANSI | Class 1500, Class 150, Class 900, Class 2500, Class 300, Class 600, |
| Pressure Calculation in DIN | 10Bar, 16Bar, 25Bar, 40Bar, 6Bar, / PN16, PN64, PN40, PN25, PN10, PN6 |
| JIS | 16 K, 20 K, 5K, 10 K, 40 K, 63 K, 30 K, |
| UNI | 10Bar 16Bar 6Bar 25Bar 40Bar |
| EN | 6Bar 25Bar 40Bar 10Bar 16Bar |

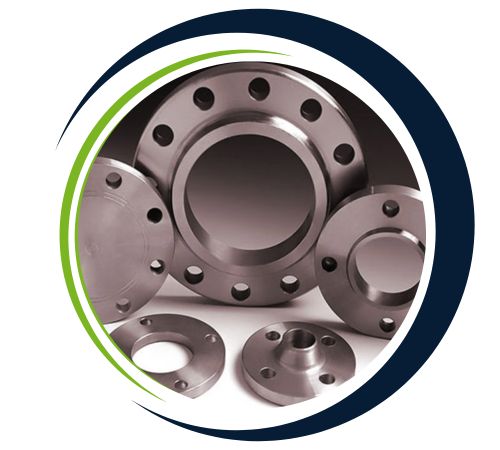

| Most common Types | Threaded / Screwed / Forged / Plate |
| Production technique |
|
| Shapes and Types we produce | Large Male-Female (LMF), Ring Type Joint (RTJ), Flat Face (FF), Small Tongue, Small Male-Female (SMF),Raised Face (RF), Large Tongue & Groove, Groove, Lap-Joint Face (LJF) |
| Test | Direct-reading Spectrograph, Magnetic particle detector, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector |
| Equipment | Pushing Machine, Press machine, Bending machine, Sand-blasting machine, electric bevelling machine etc |

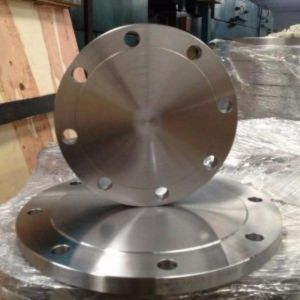

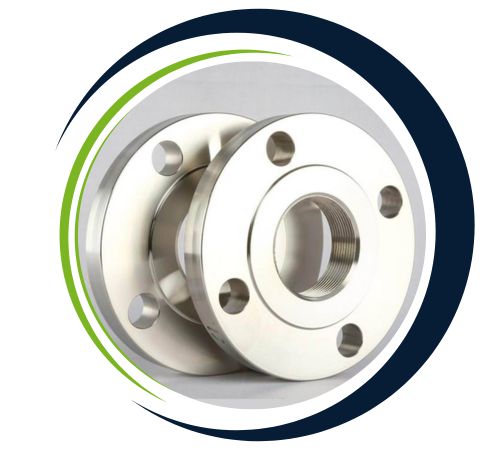

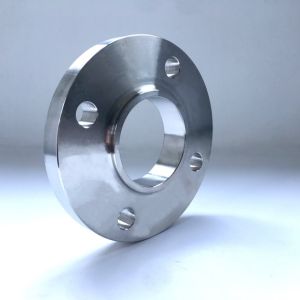

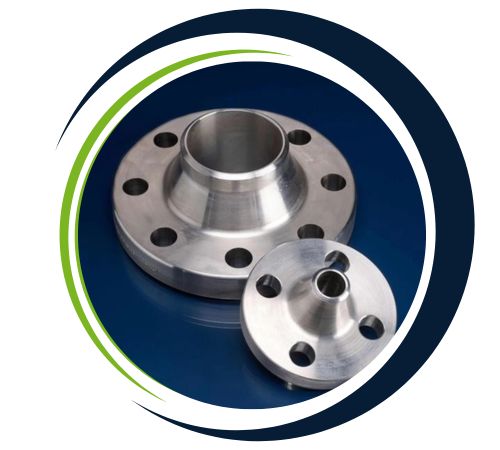

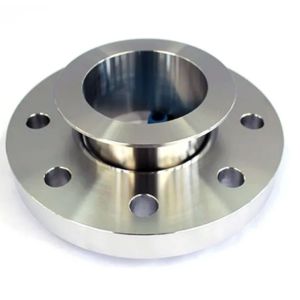

Adel Flanges, a leading supplier in Alexandria, Egypt, offers an extensive selection of Titanium Gr 5 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
You can find Titanium Gr 5 Flanges being used across various industries, including aerospace, chemical processing, marine engineering, power generation, and oil & gas, thanks to their ability to handle extreme environments. Their lightweight design and superior corrosion resistance make them ideal for aircraft structures, high-performance automotive parts, and offshore systems. In chemical and petrochemical facilities, these flanges excel in corrosive environments, ensuring safe and durable operations. They are also commonly found in heat exchangers, hydraulic systems, medical devices, and high-pressure piping systems where a strong strength-to-weight ratio and durability are essential.
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7165 | N56400 |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
Yes, we offer custom sizes for Titanium Gr 5 Flanges to meet specific project needs. Our team at Adel Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@adelflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
