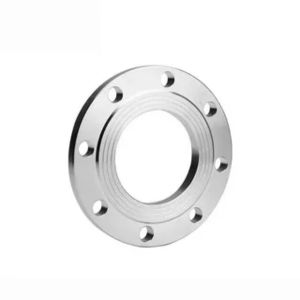

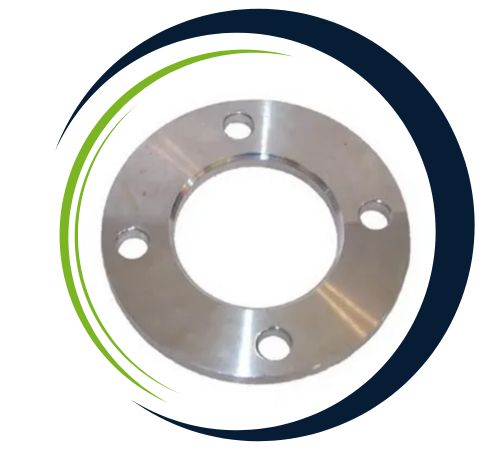

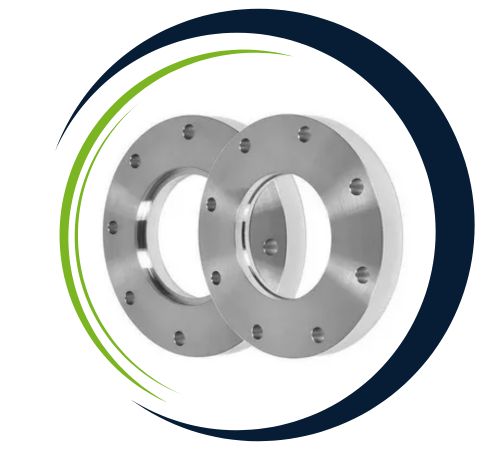

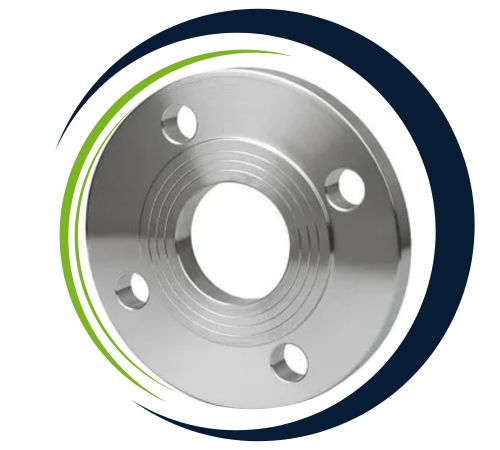

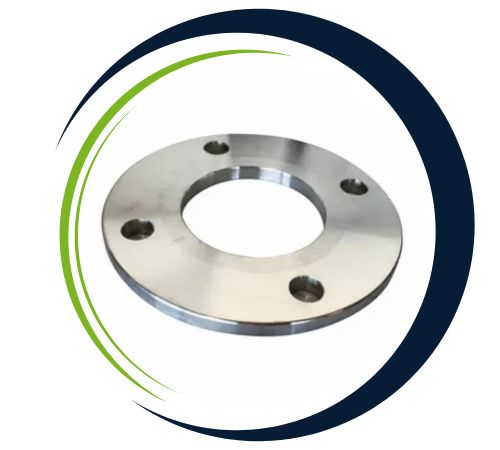

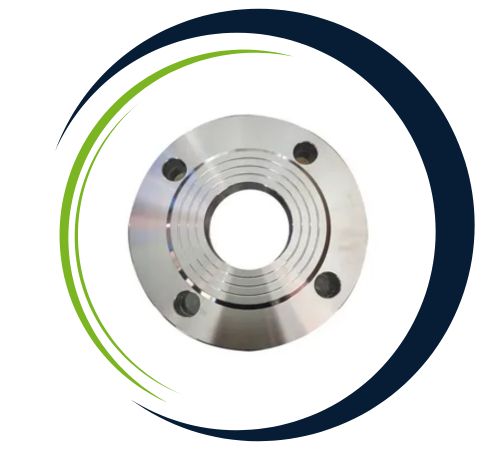

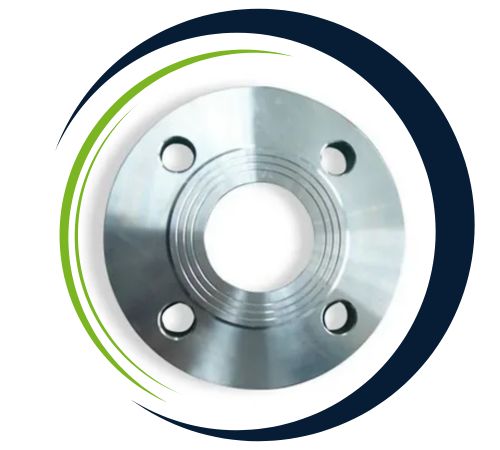

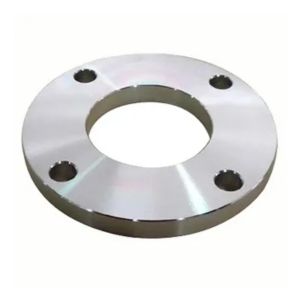

Titanium Plate Flanges are tough yet lightweight components crafted for dependable, leak-proof connections in a variety of piping systems. Made from high-quality titanium alloys, these flanges boast remarkable resistance to corrosion, an impressive strength-to-weight ratio, and outstanding performance even in high-temperature and harsh environments. Their straightforward, flat design makes installation a breeze and ensures compatibility with a wide array of pipes and fittings. Valued for their longevity, structural integrity, and ability to meet the demands of industrial applications, Titanium Plate Flanges are the go-to choice for systems that require strength, precision, and top-notch corrosion protection.
These flanges are made from premium titanium alloys, celebrated for their exceptional corrosion resistance, mechanical strength, and lightweight nature. They showcase impressive tensile and yield strength, along with remarkable resistance to fatigue, chemical exposure, and high temperatures. Their sturdy, flat design guarantees stability under pressure, while titanium’s inherent resistance to chlorides, seawater, and harsh chemicals boosts their durability. With excellent weldability, thermal stability, and a long lifespan, these flanges provide reliable mechanical performance across various industrial settings and challenging conditions.
| Specifications | ASTM B381 / ASME SB381 |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Grades | Titanium Gr. 1, Titanium Gr. 2, Titanium Gr. 4, Titanium Gr. 5, Titanium Gr. 7 |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Size | 1 / 2” to 18″ |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Flange Type | Plate Flanges |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
Adel Flanges, a premier supplier in Alexandria, Egypt, specializes in high-quality Titanium Plate Flanges. They are valued for their exceptional durability, corrosion resistance, precise engineering, and suitability across diverse industrial applications.
Titanium Plate Flanges find their place in industries like chemical processing, marine engineering, aerospace, desalination, and oil & gas, thanks to their ability to endure corrosive and high-temperature environments. Their lightweight yet robust design makes them perfect for offshore structures, seawater systems, and high-performance equipment. In chemical plants, they ensure reliable service in pipelines that transport acidic or chloride-rich media. Additionally, they are utilized in heat exchangers, hydraulic systems, desalination units, power generation facilities, and precision piping networks.
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 2 | 3.7035 | R50400 |
| Titanium Gr. 5 | 3.7165 | N56400 |
Yes, we offer custom sizes for Titanium Plate Flanges to meet specific project needs. Our team at Adel Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@adelflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
