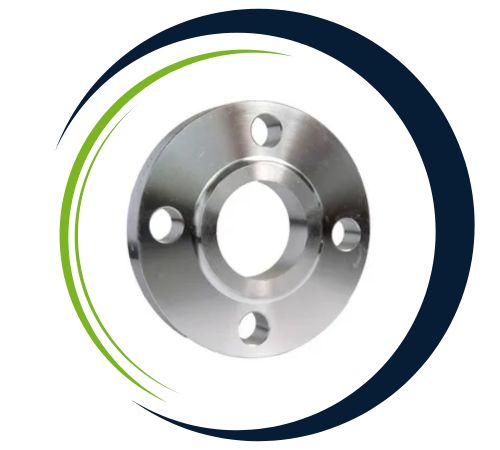

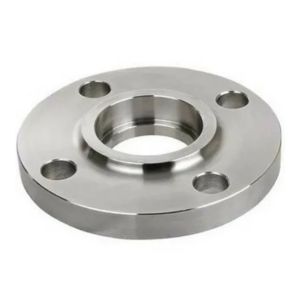

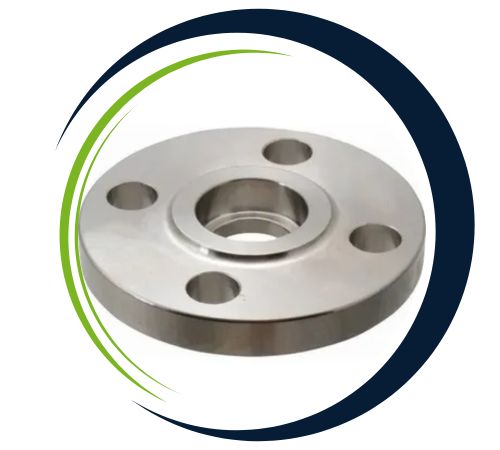

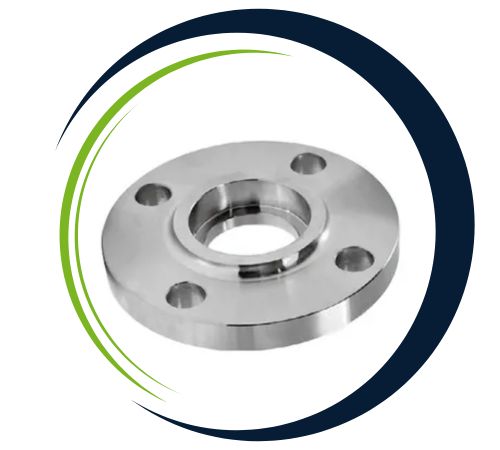

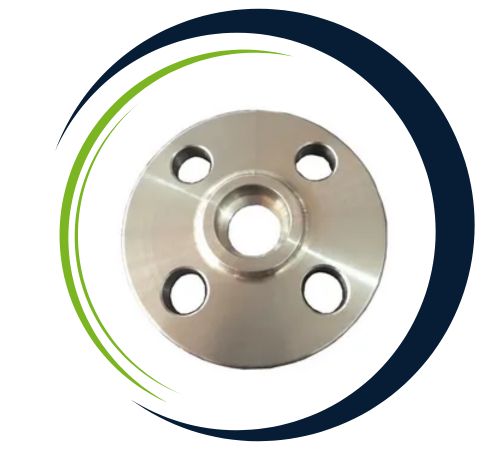

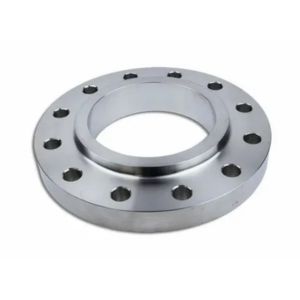

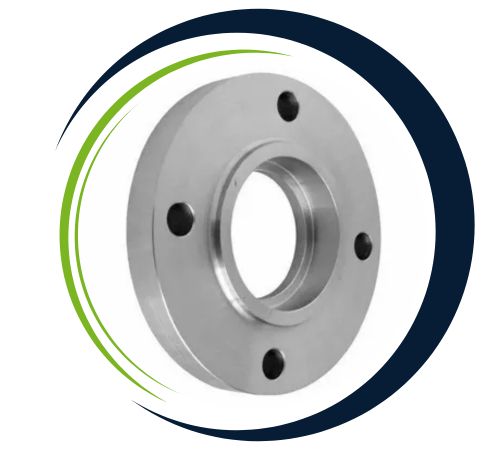

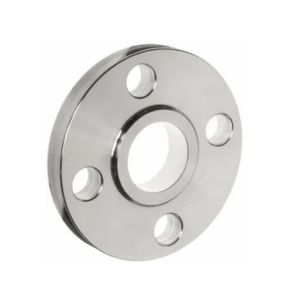

Titanium Socket Weld Flanges are expertly crafted components designed to create secure, leak-proof connections in small-diameter, high-pressure piping systems. Made from top-quality titanium alloys, these flanges boast outstanding corrosion resistance, lightweight strength, and impressive durability. Their unique socket weld design allows the pipe to fit snugly into a recessed area before welding, which helps ensure precise alignment, minimizes turbulence, and boosts structural stability. Thanks to their reliable performance, straightforward installation, and ability to handle aggressive media, Titanium Socket Weld Flanges are a go-to choice for demanding industrial applications.
These flanges are made from high-grade titanium alloys known for their remarkable mechanical strength, low weight, and excellent resistance to corrosion. They feature high tensile and yield strength, strong fatigue resistance, and superior thermal stability, even when faced with fluctuating temperatures and pressures. The socket weld design adds extra reinforcement at the joint, enhancing overall mechanical integrity. Titanium’s natural resistance to chlorides, seawater, and acidic environments guarantees long-lasting performance. These qualities make Titanium Socket Weld Flanges perfect for high-pressure and corrosive service conditions.
| Trade name | Titanium (Ti) Socket Weld / Threaded Flange |
| Titanium Socket Weld / Threaded Flanges Standard | ASTM B381 / ASME SB381 ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges |
| Titanium Socket Weld / Threaded Flange Dimensions | B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN |
| Titanium Socket Weld / Threaded Flanges Size | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000) |
| Titanium Socket Weld / Threaded Flanges Class/Pressure |
|
| Flange Face Type | Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Titanium Socket Weld / Threaded Flanges Marking | All Flanges are marked as follows: Grade, Standard, Thickness, Heat No. (Or according to the customer’s request.) |
| Delivery Time | 7-15 working days as usual, It will based on the detailed order quantity. |
Adel Flanges, a leading supplier in Alexandria, Egypt, offers an extensive selection of Titanium Socket Weld Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
You’ll find Titanium Socket Weld Flanges in a variety of industries, including chemical processing, petrochemical refining, marine engineering, offshore oil and gas, and power generation. Their corrosion resistance makes them ideal for pipelines that transport acidic or chloride-rich fluids, while their lightweight yet strong nature is perfect for aerospace and hydraulic systems. In offshore and marine settings, they provide exceptional resistance to seawater and erosion. Additionally, they are commonly used in heat exchangers, high-pressure instrumentation lines, desalination plants, and high-temperature piping systems.
| Element | Titanium | Nitrogen | Carbon | Hydrogen | Iron | Oxygen | Residuals (each) | Residuals (total) |
| % | Balance | 0.03 max | 0.08 max | 0.015 max | 0.30 max | 0.25 max | 0.1 max | 0.4 max |
| 0.2% Proof Stress | Tensile Strength | Elongation | |
| MPa | MPa | % | |
| Annealed | 275-450 | 345 | 20 |
Yes, we offer custom sizes for Titanium Socket Weld Flanges to meet specific project needs. Our team at Adel Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@adelflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
